AMPB8X Rack Boosters

Output RF power (dBm)

Frequency range (MHz)

Clear

Add to quote

SKU: N/A Categories: Power Amplifiers, RF Drivers Tag: Multi Outputs

Description
Additional information

Description

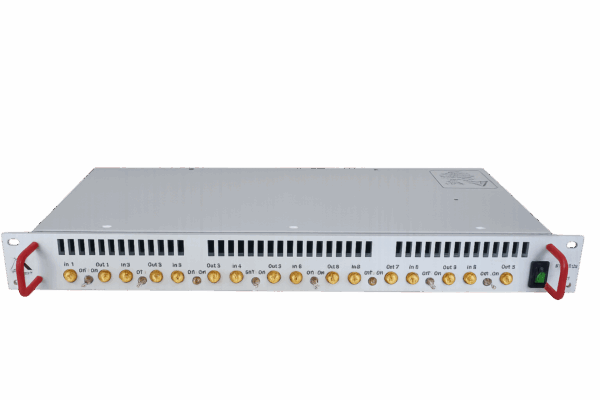

These rack boosters integrate up to 8 power Amplifiers together with their power supply and cooling to facilitate the user experience. There are also individual switches to turn ON/OFF the used/unused outputs. They are made for general purpose, covering frequency ranges up to 500/900 MHz and they will provide the necessary RF power up to 4W.

Datasheet (AMPB8X-D-3x-10-500-900-d024)

Additional information

Output RF power (dBm)	30, 34, 36, Custom
Frequency range (MHz)	10-500, 10-900, Custom
Number of Outputs	8
Output selector	8 switches ON/OFF
Gain / Flatness	Typ 35-40 / nom +/-0.5 (+/-2dB @10-900MHz)
Noise Figure	Nom 5
Output Impedance	50
Power Supply Laboratory version	110-230 VAC
Class	AB
VSWR	< 1.5/1
Input / Output connectors	SMA
Size / Weight	Rack 19”, 1U – typ 5 kg
Heat Exchange	Fan + pulsed air
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to +70 non condensing
