MT200-A0.5-800

AO Pulse Picker, Rise/fall time 160ns/mm, Carrier frequency 200 MHz, Aperture 0.5 x 1 mm², Wavelength range: 700-950 nm, RF power < 2.2W.

Description

This freespace pulse picker operates in the range of 700-950nm. With its rise/fall time of 160ns/mm and convenient beam diameter, it can extract pulses out of repetition rate as high as 12.5 MHz.

Datasheet (MT200-Ax-xx – MT200-BxAx-xx-d024)

Additional information

Material

TeO2

Wavelength (nm)

700-950

Aperture/mm²

0.5 x 1

Min beam diameter (mm)

250

Rise Time (ns)

40

Max Laser Repetition Rate

12.5

Efficiency (%)

75 – 85

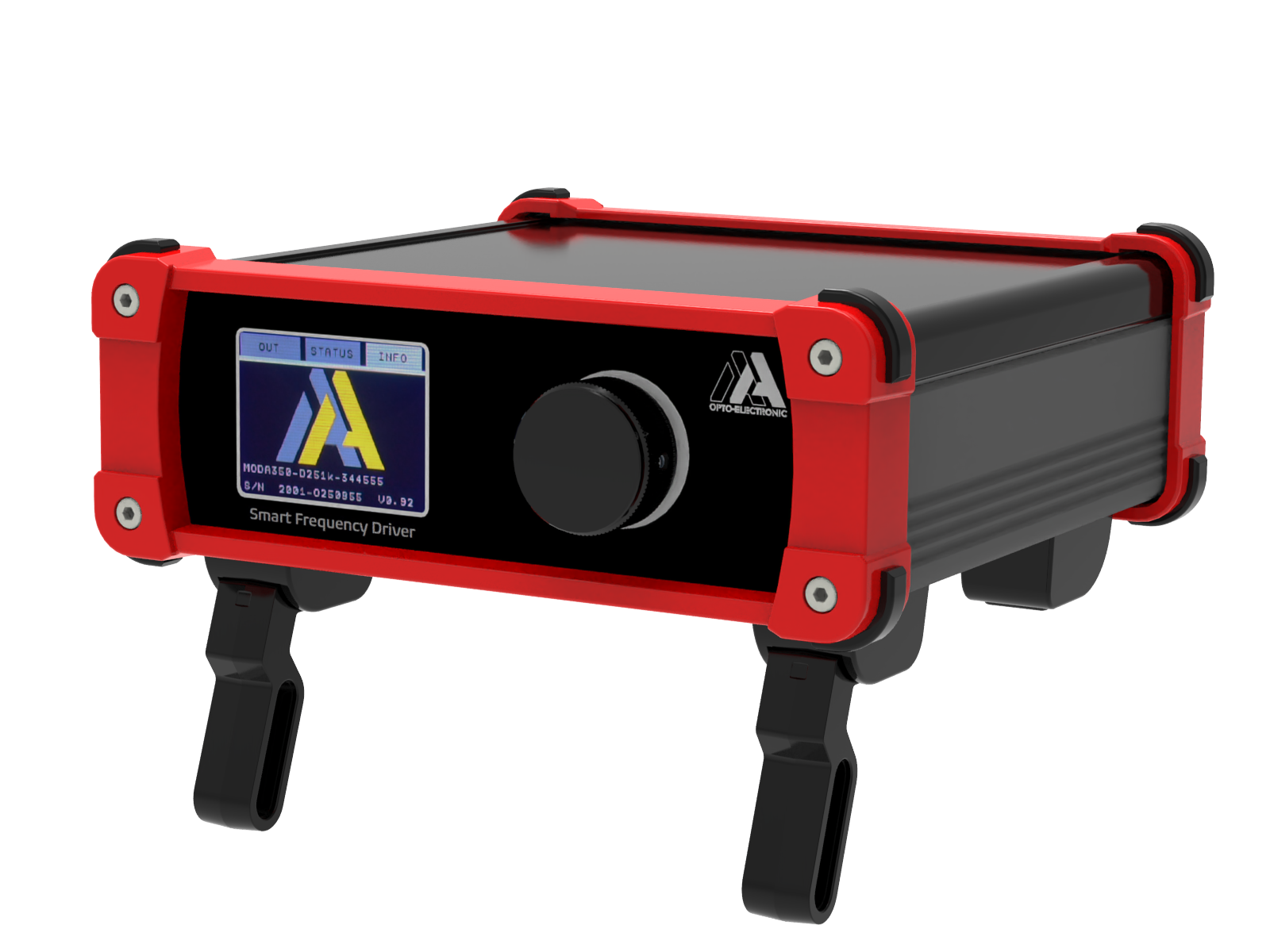

Associated RF drivers

PPK Synchronised Pulse Picker

These drivers have been designed in order to offer the highest possible performances in high speed Pulse Picking applications with repetition rates from 0.01 to 85MHz. With...
