Freespace Pulse Picker

Due to its fast rise/fall time, an AO device can be used to extract pulse(s) out of high repetition rate lasers

A pulse picker is a device used to control selectively the passage of light pulses generated by a mode locked laser for instance. Acousto Optic is a good candidate here as it offers small rise/fall time and high extinction ratio. Together with its dedicated RF driver PPKxx, the AO pulse pickers permits extraction of pulse out of high repetition rates up to 80 MHz and that, with minimum jitter, high consecutive pulse extinction ratio and high pulse to pulse stability.

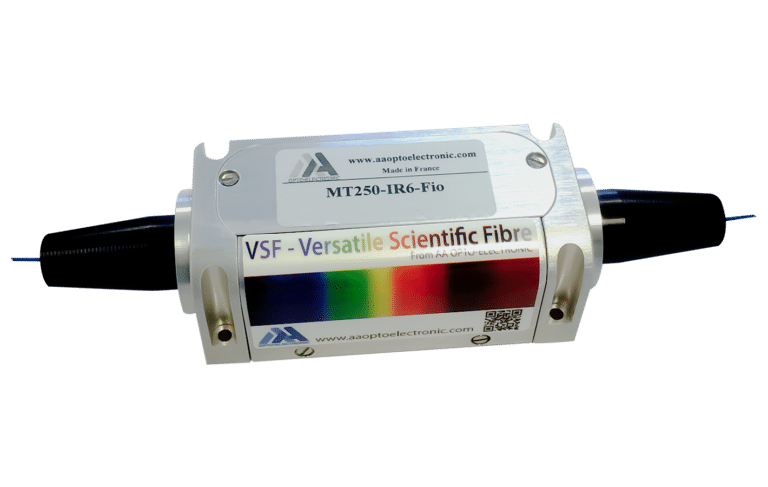

For high optical power, Quartz or Fused Silica based Pickers will be preferred. We offer both freespace and fiber pigtailed Solution.

Our models of Freespace Pulse Picker

Reset

1 – 10 of 10 results 10 results 1 result No results found

	Model	Material	Wavelength (nm)	Aperture/mm²	Max Laser Repetition Rate	Add to quote
	MT80-A0,7-1300.1600	TeO2	1300-1600	0.7 x 3	10	ADD ADD Product added
Min beam diameter (mm) 0.3 Rise Time (ns) 50 Efficiency (%) 70 Associated RF driver MODAxx PPKxx PDF
	MT80-A0,4-2000	TeO2	1900-2100	0.4 x 1	16	ADD ADD Product added
Min beam diameter (mm) 0.2 Rise Time (ns) 30 Efficiency (%) 65 Associated RF driver MODAxx PPKxx PDF Datasheet
	MQ180-A0,25-VIS	Fused silica	440-650	0 ⋅ 25 x 1	50	ADD ADD Product added
Min beam diameter (mm) 90 Rise Time (ns) 10 Efficiency (%) 75 - 85 Associated RF driver MODAxx PPKxx PDF
	MCQ40-A1.5-L1064-Z32	Quartz	1030-1080	1 ⋅ 5 ⋅ 5x1	6	ADD ADD Product added
Min beam diameter (mm) 0.7 Rise Time (ns) 80 Efficiency (%) 70 - 85 Associated RF driver MODAxx PPKxx PDF Datasheet
	MCQ80-A2-L1064-Z32	Quartz	1030-1080	2x2	6	ADD ADD Product added
Min beam diameter (mm) 0.7 Rise Time (ns) 80 Efficiency (%) 70 - 85 Associated RF driver MODAxx PPKxx PDF Datasheet
	MT250-A0.12-1030.1064	TeO2	1030-1064	0.12 x 1	80	ADD ADD Product added
Min beam diameter (mm) 37.5 Rise Time (ns) 6 Efficiency (%) 70 - 85 Associated RF driver MODAxx PPKxx PDF Datasheet
	MT200-A0.2-1064	TeO2	980-1100	0.2 x 1	50	ADD ADD Product added
Min beam diameter (mm) 65.5 Rise Time (ns) 10 Efficiency (%) 75 - 85 Associated RF driver MODAxx PPKxx PDF
	MT80-A1.5-1064	TeO2	980-1064	1.5 x 2	4	ADD ADD Product added
Min beam diameter (mm) 0.7 Rise Time (ns) 112 Efficiency (%) 70 - 85 Associated RF driver MODAxx PPKxx PDF
	MT200-A0.5-800	TeO2	700-950	0.5 x 1	12.5	ADD ADD Product added
Min beam diameter (mm) 250 Rise Time (ns) 40 Efficiency (%) 75 - 85 Associated RF driver MODAxx PPKxx PDF Datasheet
	MT250-A0.12-800	TeO2	700-950	0.12 x 1	80	ADD ADD Product added
Min beam diameter (mm) 37.5 Rise Time (ns) 6 Efficiency (%) 70 - 85 Associated RF driver MODAxx PPKxx PDF Datasheet
